Question 1
(Topic 1)

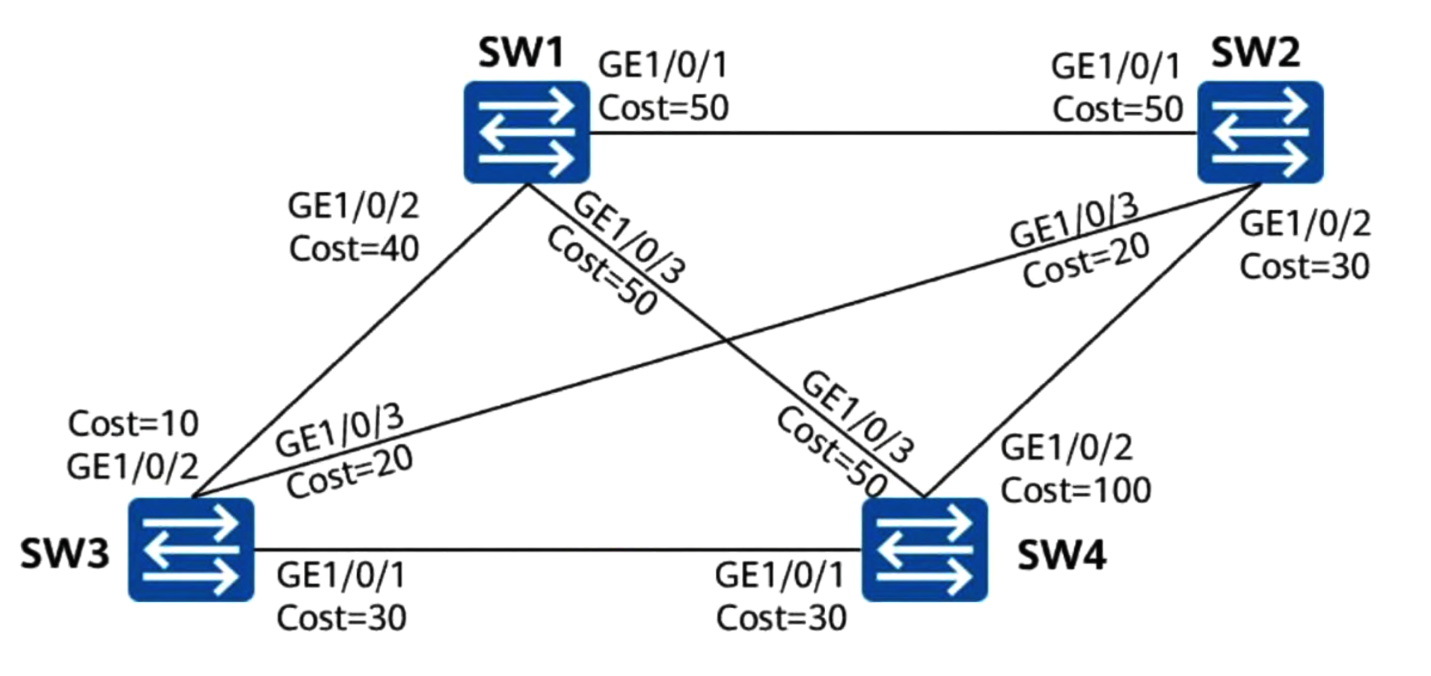

On the switched network shown in the figure, STP is enabled on all devices. SW1 is the root bridge. The port costs are shown in the figure. Other parameters retain the default values. After the network is stable, which of the following RPC values is calculated by SW4 for the path to SW1?
Select an option, then click Submit answer.
- ○ 50
- ○ 80
- ○ 40
- ○ 70
